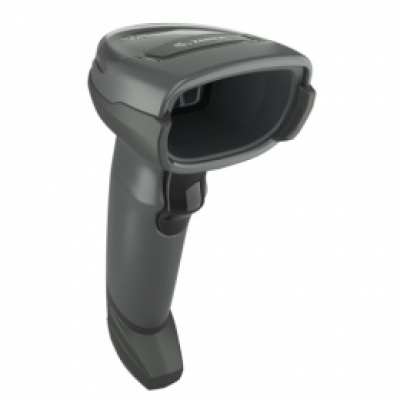

handheld scanner, 2D, imager (standard range), USB, RS-232, IP52, incl.: cable (USB, straight, 2 m), color: black
Today's customers do not want to wait in long lines at the checkout or counter. The DS4600 series offers the versatility and powerful scanning you need to keep transactions fast and lines flowing throughout the store. This feature-rich reader helps scan items of all sizes, read barcodes in almost any condition, and process transactions of all kinds. Bulky items in the shopping cart, customer card at the checkout, mobile coupon for purchase, small barcodes in the jewelry store - the DS4600 series can handle it all. Increased efficiency reduces queues and maintains the loyalty of customers who return again and again. Our unique DataCapture DNA and industry management tools that make it easier than ever to integrate, deploy, and manage your scanners.
DS4600 Series - more versatility in data collection, greater range, and more innovations.
Switching between manual and hands-free scanning
Simply place the scanner in the optional presentation stand to automatically switch to hands-free mode; then lift the scanner for manual mode - no setting change required.
Flexible feedback modes that work in any retail environment
The DS4600 series offers several feedback modes, including a good decode LED visible from any position, a traditional beep with adjustable volume/frequency, and Zebra's direct decode indicator, which projects illumination onto the barcode for instant visual confirmation of a successful scan.
Do more with productivity-enhancing innovations
Doubles productivity as a document scanner. With a single press of the scan button, the DS4600 series can capture images of checks and utility bills, and the DS4608-SR and DS4608-DL models can scan full-page documents. Intelligent document capture Zebra automatically compensates for lighting variations and enhances the image on the other side for optimal clarity.
Capture Multiple Barcodes with a Single Press of the Scan Trigger
With Multi-Code Data Formatting (MDF), the DS4600 series can scan multiple barcodes with a single trigger pull and transmit only the barcodes you need, in the order your application expects.
One of one barcode from many
With Zebra's preferred symbol, the DS4600 series can capture and output only the preferred barcode, so workers no longer need to waste time physically covering nearby barcodes before scanning.
Deactivate EAS Tags During Scanning
Optional EAS support available on DS4608-HD / HL models allows affiliates to deactivate EAS Checkpoint tags when scanning prices, increasing checkout productivity and preventing false alarms.
Simplify Data Collection with OCR
Let intelligent technology do the work. OCR support accelerates data collection from identification cards and travel documents that may not have barcodes - speeding up transactions at checkouts in airport shops and other locations.
Dimensions | 6.5 in. H x 2.6 in. W x 3.9 in. D 16.5 cm H x 6.7 cm W x 9.8 cm D |
Weight | 5.7 oz. / 161.9 g |
Input Voltage Range | 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
Operating Current at Nominal Voltage (5.0V) | 340 mA (typical) |
Standby Current (Idle) at Nominal Voltage (5.0V) | 150 mA (typical) |
Color | Nova White, Twilight Black |
Supported Host Interfaces | USB, RS232, TGCS (IBM) 46XX over RS485 |
Keyboard Support | Supports over 90 international keyboards |
Electronic Article Surveillance | Compatible with Checkpoint EAS deactivation system |
User Indicators | Direct Decode Indicator, Good Decode LEDs, rear view LEDs, beeper (adjustable tone and volume) |
Light Source | Aiming Pattern: circular 617nm amber LED |
Illumination | (2) 660nm red LEDs |
Imager Field of View | 36.1° H x 22.6° V nominal |
Image Sensor | 1280 x 800 pixels |
Minimum Print Contrast | 15% minimum reflective difference |
Skew Tolerance | +/- 60° |
Pitch Tolerance | +/- 60° |
Roll Tolerance | 0° - 360° |
Graphics Format Support | Images can be exported as Bitmap, JPEG or TIFF |
Image Quality | 96PPI on an A4 document (DS4608-SR) |
Operating Temperature | 32.0° to 122.0° F / 0.0° to 50.0° C |
Storage Temperature | -40.0° to 158°.0° F / -40.0° to 70.0° C |
Humidity | 5% to 95% RH, non-condensing |
Drop Specification | Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete |
Tumble Specification | Designed to withstand 2,000 tumbles in 1.5 ft./0.5 m tumbler |
Environmental Sealing | IP52 |
Electrostatic Discharge (ESD) | ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
Ambient Light Immunity | 0 to 10,000 foot candles/0 to 107,000 Lux |
Environmental | 2011/65/EU and EN 50581:2012 and EN IEC 63000:2018 |
Electrical Safety | UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07. EN 60950-1:2006/A2:2013 ?IEC 60950-1:2005/A2:2013? IEC 62368-1 (ed.2); EN 62368-1:2014 |
LED Safety | IEC 62471:2006 (Ed.1.0); EN 62471:2008 |
EMI/RFI | FCC: 47 CFR Part 15, Subpart B, Class B ?ICES-003 Issue 6, Class B ?EN 55032, Class B? EN 55024? EN 55035 ?EN 60601-1-2:2015, IEC 60601-1-2:2014 |
Gooseneck Intellistand, Cup |
1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm, DotCode, Dotted DataMatrix |
OCR | OCR-A, OCR-B, MICR, US Currency |
Refer to Product Reference Guide for complete list of symbologies. | |
Minimum Element Resolution | Code 39 - 3.0 miles (DS4608-SR)? DataMatrix - 5.0 miles (DS4608-SR)? Code 39 - 2.0 miles (DS4608-HD)? DataMatrix - 4.0 mil (DS4608-HD) |
Symbology/Resolution | Near/Far |
Code 39: 3 mil | 2.2 in./5.6 cm to 5.4 in./13.7 cm |
Code 39: 5 mil | 0.7 in./1.8 cm to 11.0 in./27.9 cm |
Code 39: 20 mil | 0 in./0 cm to 44.0 in./111.8 cm |
Code 128: 5 mil | 2.7 in./6.9 cm to 5.4 in./13.7 cm |
PDF 417: 6.7 mil | 1.3 in./3.3 cm to 10.0 in./25.4 cm |
UPC: 13 mil (100%) | 0 in./0 cm to 28.0 in./71.1 cm |
DataMatrix: 10 mil | 1.0 in./2.5 cm to 11.5 in./29.2 cm |
QR: 20 mil | 0 in./0 cm to 17.5 in./44.5 cm |
Symbology/Resolution | Near/Far |
Code 39: 3 mil | 1.3 in./3.3 cm to 6.0 in./15.2 cm |
Code 39: 5 mil | 0 .1 in./0.3 cm to 11.5 in./29.2 cm |
Code 39: 20 mil | 0.6 in./1.5 cm to 29.0 in./73.7 cm |
Code 128: 5 mil | 1.7 in./4.3 cm to 5.0 in./12.7 cm |
PDF 417: 6.7 mil | 0.6 in./1.5 cm to 9.3 in./23.6 cm |
UPC: 13 mil (100%) | 0 in./0 cm to 18.0 in./45.7 cm |
DataMatrix: 10 mil | 0.2 in./0.5 cm to 9.5 in./24.1 cm |
QR: 20 mil | 0 in./0 cm to 13.5 in./34.3 cm |
.
